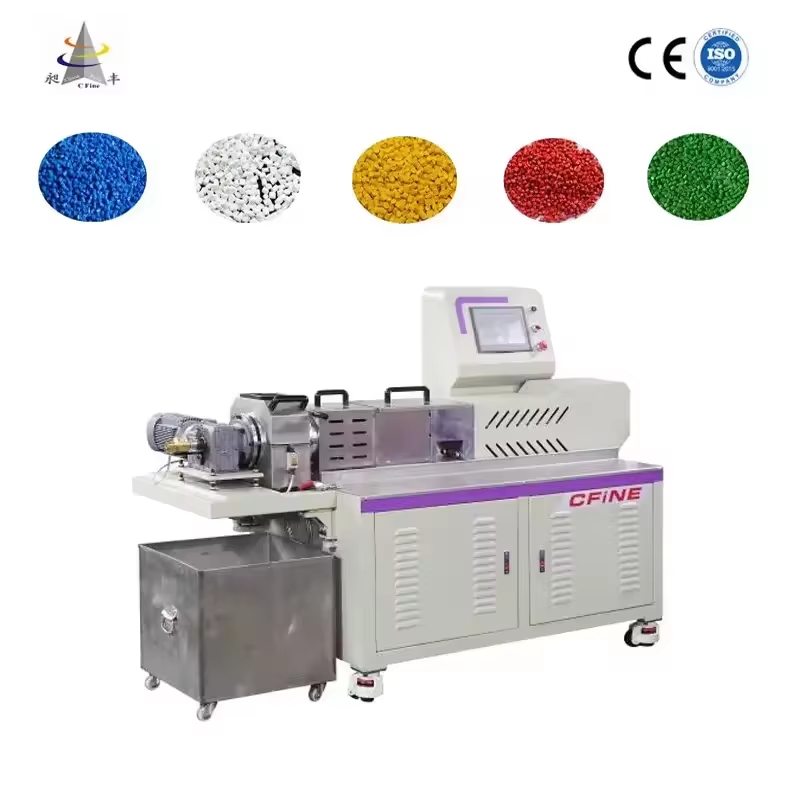

Ceramic Extrusion laboratory Lab Pelletizer 5L PLC Controlled
Basic Properties
Place of Origin:
Guangdong,China
Brand Name:
CFine
Certification:
CE,ISO 9001
Model Number:
CF-170
Trading Properties
Minimum Order Quantity:
1 set
Price:
$50000~$60000
Payment Terms:
L/C,D/A,D/P,T/T,Western Union
Product Summary
Custom 1L Ceramic Extrusion Pelletizer Product Overview Designed for ceramic powder injection molding applications, this granulation unit works alongside 0.3L or 0.6L internal mixers to carry out the granulation process following internal mixing of the powder materials. A PLC-based control system ...
Product Details
Highlight:
Extrusion Lab Pelletizer
,5L Lab Pelletizer
,PLC laboratory pelletizer
Capacity:
5L
Power Of The Oil Pump Motor:
2.2kw
Each Batch Of Material Input:
10~15kg
Total Heating Power:
About 12kw
MAX Pressure:
14Mpa
Maximum Granulation Speed:
50r/min
Size:
L2300*W900*H1450mm
Weight:
About 1500kg
Product Description
Custom 1L Ceramic Extrusion Pelletizer
Product Overview
Designed for ceramic powder injection molding applications, this granulation unit works alongside 0.3L or 0.6L internal mixers to carry out the granulation process following internal mixing of the powder materials. A PLC-based control system ensures accurate management of temperature, movement, and additional program settings.
Technical Specifications
| Specification | CF-75 | CF-90 | CF-170 |
|---|---|---|---|
| Storage Tank Volume | 1L | 1L | 5L |
| Each Batch of Material Input | 1-3KG | 2-5KG | 10-15KG |
| Injection Cylinder | Φ75MM | Φ90MM | Φ170MM |
| Oil Hydraulic Cylinder | Φ40*265mm | Φ100*550mm | Φ150*600mm |
| MAX Pressure | 9Mpa | 14Mpa | 14Mpa |
| MAX Shear Rate | 200r/min | 200r/min | 50r/min |
| Size | L1200*W600*H1350MM | L2030*W830*H1450MM | L2300*W900*H1450MM |
| Weight | About 85KG | About 1200KG | About 1500KG |
After-sales Service
During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and foreign brands.
