OEM Ceramic Extruder Lab Pelletizer Equipment 9Mpa
Basic Properties
Place of Origin:
Guangdong,China
Brand Name:
CFine
Certification:
CE,ISO 9001
Model Number:
CF-75
Trading Properties
Minimum Order Quantity:
1 set
Price:
$40000~$50000
Payment Terms:
L/C,D/A,D/P,T/T,Western Union
Product Summary
Custom 1L Ceramic Extrusion Pelletizer Product Overview The granulator is designed for processing ceramic powder injection molding materials. This equipment works in conjunction with 0.3L or 0.6L internal mixers to complete the granulation process after powder materials are internally mixed. The PLC ...
Product Details
Highlight:
OEM Lab Pelletizer
,9Mpa Lab Pelletizer
,9Mpa extruder pelletizer
Capacity:
1L
Power Of The Oil Pump Motor:
0.75kw
Each Batch Of Material Input:
1~3kg
Total Heating Power:
About 2kw
MAX Pressure:
9Mpa
Maximum Granulation Speed:
0~200r/min
Size:
L1200*W600*H1350mm
Weight:
About 85kg
Product Description

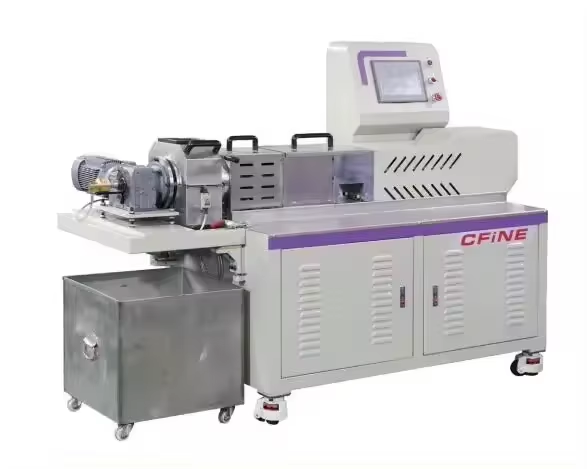

Custom 1L Ceramic Extrusion Pelletizer
Product Overview
The granulator is designed for processing ceramic powder injection molding materials. This equipment works in conjunction with 0.3L or 0.6L internal mixers to complete the granulation process after powder materials are internally mixed. The PLC system provides precise control over temperature, movement, and other program parameters.
Technical Specifications
| Specification | CF-75 | CF-90 | CF-170 |
|---|---|---|---|
| Storage Tank Volume | 1L | 1L | 5L |
| Each Batch of Material Input | 1-3KG | 2-5KG | 10-15KG |
| Injection Cylinder | Φ75MM | Φ90MM | Φ170MM |
| Oil Hydraulic Cylinder | Φ40*265mm | Φ100*550mm | Φ150*600mm |
| MAX Pressure | 9Mpa | 14Mpa | 14Mpa |
| MAX Shear Rate | 200r/min | 200r/min | 50r/min |
| Size | L1200*W600*H1350MM | L2030*W830*H1450MM | L2300*W900*H1450MM |
| Weight | About 85KG | About 1200KG | About 1500KG |
After-sales Service
During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and foreign brands.
