Ceramic Extrusion Lab Scale Pelletizer 1L 14Mpa Custom
Basic Properties
Place of Origin:
Guangdong,China
Brand Name:
CFine
Certification:
CE,ISO 9001
Model Number:
CF-90
Trading Properties
Minimum Order Quantity:
1 set
Price:
$45000~$55000
Payment Terms:
L/C,D/A,D/P,T/T,Western Union
Product Summary
Custom 1L Ceramic Extrusion Pelletizer Product Overview This granulator is engineered specifically for the processing of ceramic powder injection molding materials. It operates in conjunction with a 0.3L or 0.6L internal mixer, taking over the granulation step once the powdered materials have been ...
Product Details
Highlight:
1L lab scale pelletizer
,Custom lab scale pelletizer
,14Mpa Extrusion Pelletizer
Capacity:
1L
Power Of The Oil Pump Motor:
2.2kw
Each Batch Of Material Input:
2~5kg
Total Heating Power:
About 6kw
MAX Pressure:
14Mpa
Maximum Granulation Speed:
0~200r/min
Size:
L2030*W830*H1450mm
Weight:
About 1200kg
Product Description

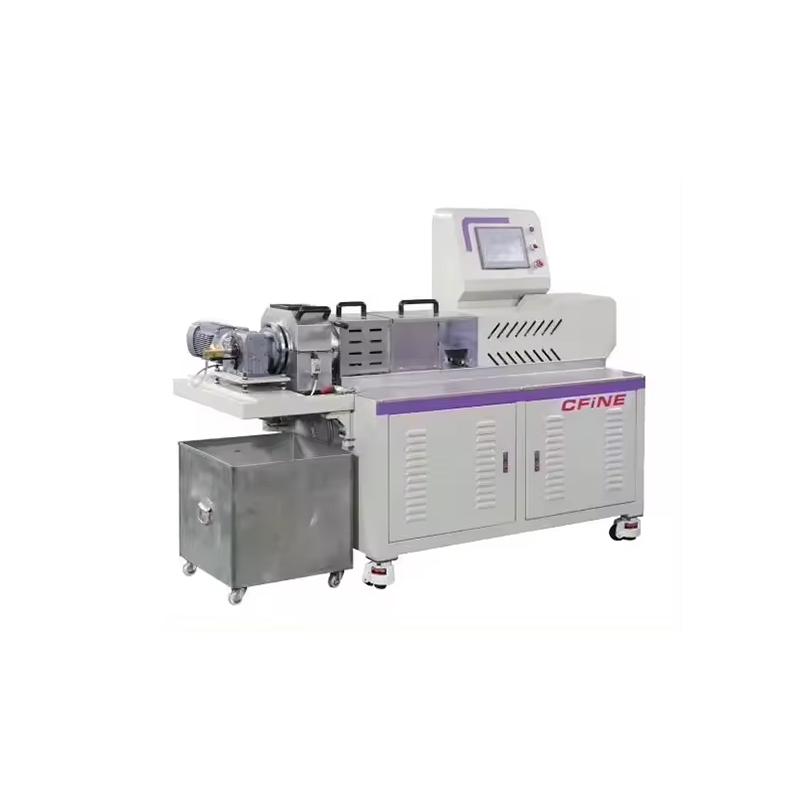

Custom 1L Ceramic Extrusion Pelletizer
Product Overview
This granulator is engineered specifically for the processing of ceramic powder injection molding materials. It operates in conjunction with a 0.3L or 0.6L internal mixer, taking over the granulation step once the powdered materials have been internally compounded. An integrated PLC system delivers precise regulation of temperature, motion, and other program parameters throughout the operation.
Technical Specifications
| Specification | CF-75 | CF-90 | CF-170 |
|---|---|---|---|
| Storage Tank Volume | 1L | 1L | 5L |
| Each Batch of Material Input | 1-3KG | 2-5KG | 10-15KG |
| Injection Cylinder | Φ75MM | Φ90MM | Φ170MM |
| Oil Hydraulic Cylinder | Φ40*265mm | Φ100*550mm | Φ150*600mm |
| MAX Pressure | 9Mpa | 14Mpa | 14Mpa |
| MAX Shear Rate | 200r/min | 200r/min | 50r/min |
| Size | L1200*W600*H1350MM | L2030*W830*H1450MM | L2300*W900*H1450MM |
| Weight | About 85KG | About 1200KG | About 1500KG |
After-sales Service
During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and foreign brands.
