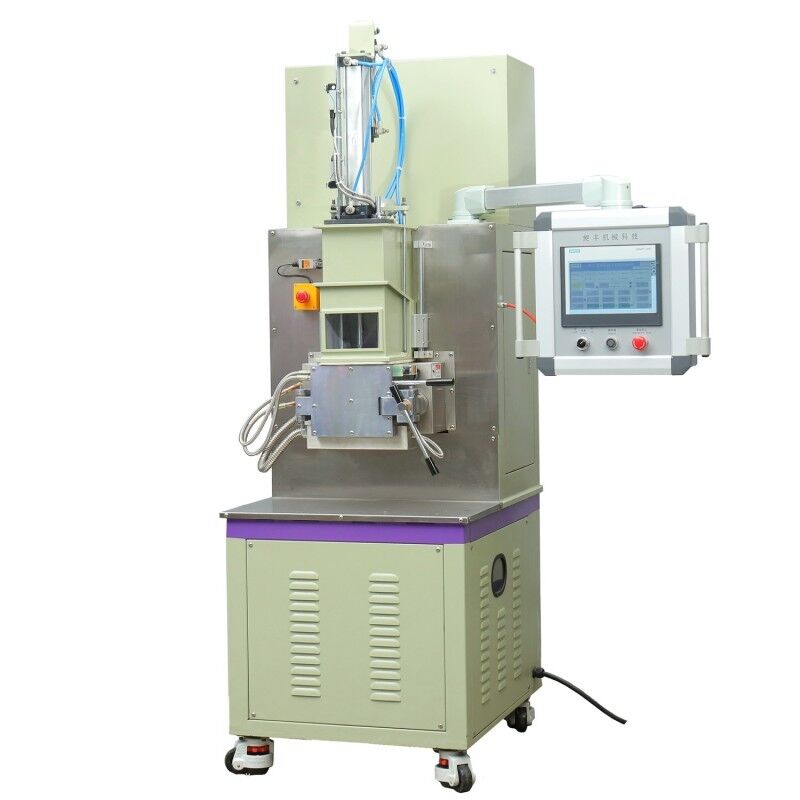

930kg Lab Kneader Mixer Machine Mixing Chamber Internal Structure

This internal mixer is constructed from imported all-alloy materials (eliminating the need for spraying or electroplating), ensuring exceptional strength and wear resistance. It is specifically designed for stirring, dispersing, and mixing ceramic powders and other formulations containing binders at controlled temperatures. When materials reach a mud-like consistency, they are discharged after a predetermined period and proceed to the next processing stage. This equipment is ideal for small-batch production, prototyping, laboratory applications, and educational purposes.

• Constructed from imported all-alloy materials (no spraying or electroplating required), providing excellent resistance to erosion and corrosion including salt, acid, alkali, and hydrogen sulfide corrosion. Features high precision and superior surface finish.
• The mixing chamber opens automatically via hydraulic system, with easily removable rotors. This eliminates traditional mixer limitations related to cleaning difficulty, color changing, and maintenance. All material contact surfaces are mirror-polished to prevent material adhesion and simplify cleaning, effectively controlling material contamination.

• CFine's anti-leakage powder device utilizes mechanical shaft seal tightening technology with self-lubricating seal rings that maintain compression during mixing. This reduces mixing system wear and minimizes noise from leakage, significantly improving anti-leakage performance while simplifying cleaning, color changing, and disassembly.
• Features a through-type heating system for faster heating and more uniform temperature distribution, delivering 50% higher heating efficiency compared to traditional heating plates. Operates with PLC program control system.
• Mixing chamber internal structure employs complex tube-belt design for optimal heat exchange and precise temperature control. Water-cooled rotors prevent material sticking and ensure precise temperature management for more uniform material dispersion.

Non-consumable parts are guaranteed for one year free of charge during normal use. We provide on-site installation guidance and long-term technical support.
