Custom Rubber Lab Kneader Precision Mixer Machine 10 Liter For Industrial Mixing

Lab Kneader precision mixing machine custom 10 liter open close type ideal for industrial laboratory mixing applications

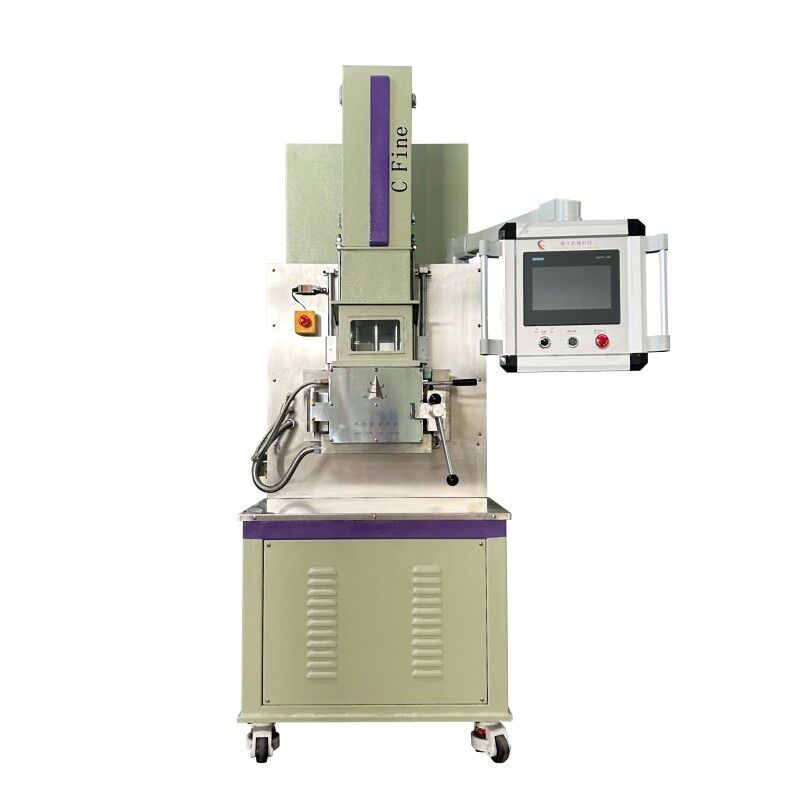

Custom Open Close Type Kneader Mixing Machine designed for precision mixing applications in industrial and laboratory settings.

This internal mixer is constructed from imported all-alloy materials (eliminating the need for spraying or electroplating), ensuring exceptional strength and wear resistance. It is specifically designed for stirring, dispersing, and mixing ceramic powders and other formulations containing binders at controlled temperatures. When materials reach a mud-like consistency, they are discharged after a predetermined period and proceed to the next processing stage. This equipment is ideal for small-batch production, prototyping, laboratory applications, and educational purposes.

• Constructed from imported all-alloy materials (no spraying or electroplating required), providing excellent resistance to erosion and corrosion including salt, acid, alkali, and hydrogen sulfide corrosion. Features high precision and superior surface finish.
• The mixing chamber opens automatically via hydraulic system, with easily removable rotors. This eliminates traditional mixer limitations related to cleaning difficulty, color changing, and maintenance. All material contact surfaces are mirror-polished to prevent material adhesion and simplify cleaning, effectively controlling material contamination.

• The anti-leakage powder unit from CFine is built around mechanical shaft seal tightening, equipped with self-lubricating seal rings that keep compression steady throughout the mixing cycle. As a result, wear on the mixing assembly is reduced and noise caused by leakage is kept to a minimum, which greatly strengthens leakage resistance and at the same time makes cleaning, color changes, and disassembly more convenient. A through-type heating system delivers faster warm-up and more even heat distribution, achieving roughly 50% greater heating efficiency than conventional heating plates, with operation managed by a PLC control system. Inside the mixing chamber, a complex tube-belt geometry optimizes heat exchange and allows tight temperature regulation, while water-cooled rotors help prevent material from sticking and support precise thermal control, yielding more homogeneous dispersion of the material.

Non-consumable parts are guaranteed for one year free of charge during normal use. We provide on-site installation guidance and long-term technical support.
