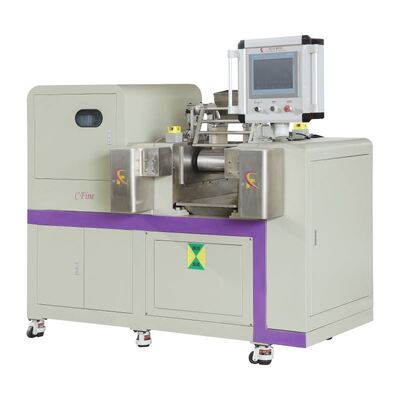

3000g~5000g Open Type Lab Two Roll Mill For Rubber Compounding

3000g~5000g Open Type Lab Two Roll Mill For Rubber Compounding
3000g~5000g Open Type Lab Two Roll Mill For Rubber Compounding

Large Image :  3000g~5000g Open Type Lab Two Roll Mill For Rubber Compounding

Product Details:
Place of Origin: Guangdong,China
Brand Name: CFine
Certification: CE,ISO 9001
Model Number: CF-230
Payment & Shipping Terms:
Price: $20000~$40000
Packaging Details: wooden box package
Delivery Time: 60~180 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Contact Now Chat Now

3000g~5000g Open Type Lab Two Roll Mill For Rubber Compounding

Description
Mixing Capacity: About 3000g~5000g Roller Dimensions: ф<230mm>×L620mm
Roller Spacing: 0.1-10mm Temperature Controller: RKC（Japen）
Drum Rotation Speed: 0-30r/min Main Motor: 16kw
Weight: About 1300kg Size: 1500×1000×1600mm
Highlight:

5000g Lab Two Roll Mill

,

open type Lab Two Roll Mill

,

two roll mill for rubber compounding

Custom 9-inch Two Roll Mill For Rubber
A specialized open-type plastic material intermittent mixing equipment designed for rubber processing applications.
Product Introduction
This open mill features an adjustable inter-roll gap and consists of two parallel rollers, serving as an efficient intermittent mixing solution for plastic materials.
Technical Specifications

Custom configurations available upon request.

Model CF-120 CF-160 CF-200 CF-230 Remarks
Diameter of Barrel (mm) 120 160 200 230 Length of barrel can be customized
Length of Barrel (mm) 350 350 520 620
Batch Feeding 500g~800g 800g~1500g 1500g~2600g 3000g~5000g
Electrical Heating (kw) 0.75 1.5 3.75 3.75
Water Cooling (kw) 3.75 5.5 7.5 11
Weight (KG) 400 600 850 1100
Product Function
The primary functions include mixing and homogenizing raw materials, followed by melting and plasticizing them to provide uniformly mixed and plasticized molten materials for continuous rolling machines.
Product Use
The rubber compounding process is driven by compressive and shear forces generated by two counter-rotating rotors. This intensive mechanical action not only kneads the material but also induces chemical reactions that break down polymeric chains in rubber and plastic. The main objective is to achieve uniform dispersion of all ingredients throughout the compound, ensuring optimal compounding results.
Custom 9-inch Two Roll Mill for rubber processing equipment
