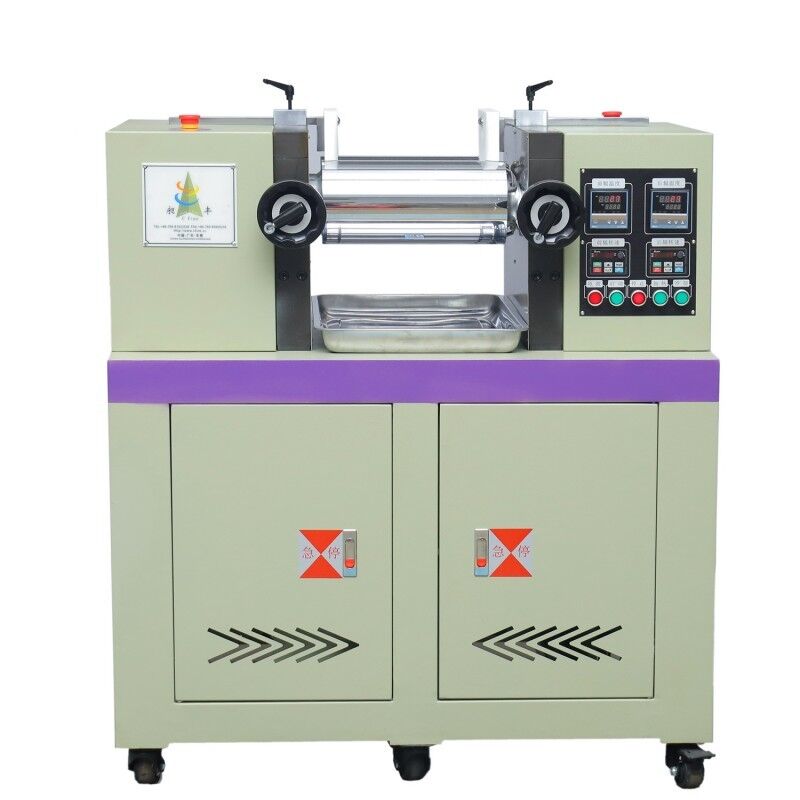

Precise Lab Two Roll Mill For Plastic And Rubber 9 inch 16Kw
Basic Properties
Place of Origin:
Guangdong,China
Brand Name:
CFine
Certification:
CE,ISO 9001
Model Number:
CF-230
Trading Properties
Price:
$20000~$40000
Payment Terms:
L/C,D/A,D/P,T/T,Western Union
Product Summary
Durable Two Roll Mill for Plastic and Rubber Applications Offering Precise Control of Inter Roll Gap and Mixing Performance Custom 9-inch Open Mixing Mill For Rubber A specialized open-type plastic material intermittent mixing equipment designed for rubber processing applications. Product Introducti...
Product Details
Highlight:
16Kw Lab Two Roll Mill
,9 inch Lab Two Roll Mill
,16Kw two roll mill for plastic
Mixing Capacity:
About 3000g~5000g
Roller Dimensions:
ф<230Mm>×L620Mm
Roller Spacing:
0.1-10Mm
Temperature Controller:
RKC（Japen）
Drum Rotation Speed:
0-30R/Min
Main Motor:
16Kw
Weight:
About 1300Kg
Size:
1500×1000×1600Mm
Product Description
Durable Two Roll Mill for Plastic and Rubber Applications Offering Precise Control of Inter Roll Gap and Mixing Performance
Custom 9-inch Open Mixing Mill For Rubber
A specialized open-type plastic material intermittent mixing equipment designed for rubber processing applications.
Product Introduction
This open mill features an adjustable inter-roll gap and consists of two parallel rollers, serving as an efficient intermittent mixing solution for plastic materials.
Technical Specifications
Custom configurations available upon request.
| Model | CF-120 | CF-160 | CF-200 | CF-230 | Remarks |
|---|---|---|---|---|---|
| Diameter of Barrel (Mm) | 120 | 160 | 200 | 230 | Length of barrel can be customized |
| Length of Barrel (Mm) | 350 | 350 | 520 | 620 | |
| Batch Feeding | 500g~800g | 800g~1500g | 1500g~2600g | 3000g~5000g | |
| Electrical Heating (Kw) | 0.75 | 1.5 | 3.75 | 3.75 | |
| Water Cooling (Kw) | 3.75 | 5.5 | 7.5 | 11 | |
| Weight (Kg) | 400 | 600 | 850 | 1100 |
Product Function
The primary functions include mixing and homogenizing raw materials, followed by melting and plasticizing them to provide uniformly mixed and plasticized molten materials for continuous rolling machines.
Product Use
The rubber compounding process is driven by compressive and shear forces generated by two counter-rotating rotors. This intensive mechanical action not only kneads the material but also induces chemical reactions that break down polymeric chains in rubber and plastic. The main objective is to achieve uniform dispersion of all ingredients throughout the compound, ensuring optimal compounding results.
