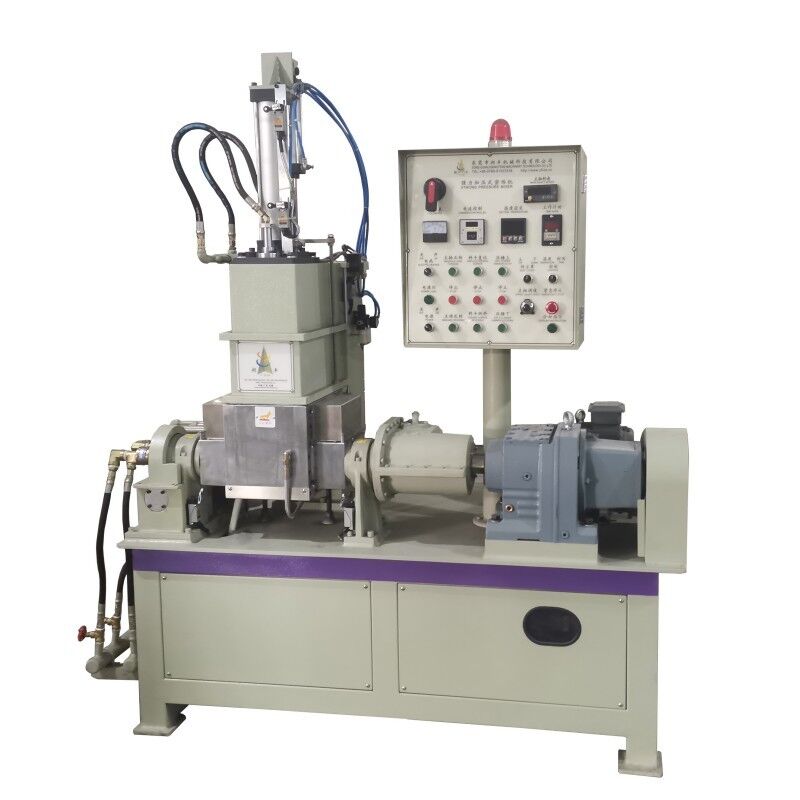

3L Lab Kneader Machine Internal Mixer For Rubber 10kg~15kg

Name: 3L Lab Kneader Machine Internal Mixer For Rubber 10kg~15kg
Brand: Changfeng Navigation (Dongguan) Technology Co., Ltd.
SKU: CF-3L
Price: 35,000.00 USD
Availability: InStock

Basic Properties

Place of Origin: Guangdong,China

Brand Name: CFine

Certification: CE,ISO 9001

Model Number: CF-3L

Trading Properties

Minimum Order Quantity: 1 set

Price: $30000~$40000

Payment Terms: L/C,D/A,T/T,D/P,Western Union

Custom 3L Metal Powder Kneader Machine Product Overview This mixer features components that contact materials—including the mixing chamber, side plate, pressure hammer, and mixing blade shaft—coated with tungsten carbide ultra-wear-resistant, pollution-free coating. It is designed for stirring, ...

Product Details

Highlight:

15kg Lab Kneader

,

10kg Lab Kneader

,

3L internal mixer for rubber

Capacity: 3L

Batch Feeding: 10~15kg

Driving Motor Power: 7.5kw

Tilting Motor Power: 0.75kw

Speed Of The Protor(Front/Rear): 40/31 R/min

Weight: About 1100kg

Size: L1800*W850*H2050mm

Type Of Cooling: Water-cooling

Product Description

Custom 3L Metal Powder Kneader Machine

Product Overview

This mixer features components that contact materials—including the mixing chamber, side plate, pressure hammer, and mixing blade shaft—coated with tungsten carbide ultra-wear-resistant, pollution-free coating. It is designed for stirring, dispersing, and mixing metal powders with binders and other formulations at controlled temperatures. Once the material forms a mud mass, it is discharged for subsequent processing. Ideal for small-batch production, prototyping, laboratories, and educational applications.

Technical Specifications

Model	CF-1L	CF-2L	CF-3L	CF-5L	CF-10L	CF-15L
Capacity (L)	1	2	3	5	10	15
Driving Motor Power (kW)	4	5.5	7.5	11	18.5	22
Tilting Motor Power (kW)	0.75	0.75	0.75	0.75	1.5	1.5
Rotor Speed (Front/Rear) (r/min)	40/31	40/31	40/31	40/31	40/31	40/31
Air Compression Pressure (MPa)	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8
Net Weight (kg)	800	1000	1100	1500	2500	2600

Product Advantages

Advanced powder leak-proof design for easy replacement and removal
Enhanced heating and cooling system with faster warming and superior cooling performance
Utility model patents for ceramic and metal applications; interior contact surfaces coated with ultra-wear-resistant alloy to significantly extend service life

Operating Principle

Two rotors in the mixing chamber rotate at specific speed ratios, capturing material from the feeding port and directing it through the roller gap. Here, the material undergoes squeezing and shearing. After passing the gap, it strikes the sharp edge of the "W"-shaped mixing chamber, splitting into two streams that flow along the front and rear chamber walls before returning to the rotor top. Within the sealed chamber, materials are subjected to intense shearing and mixing under controlled pressure and temperature, ensuring optimal dispersion, plasticization, and formula performance.

Mixing System

The "W"-shaped mixing chamber, combined with an "M"-shaped lower pressure cover, creates a fully enclosed mixing environment. The prismatic spiral stirring blade eliminates dead angles, enabling precise shearing and dispersion to meet physical property requirements. Constructed from high-quality, high-carbon steel, the hollow stirring blade and other material-contact components undergo tempering, deep nitriding heat treatment (72 hours in vacuum), and tungsten carbide coating with smooth surface finishing. This ensures wear resistance, corrosion resistance, non-stick properties, and extended service life.

Technical Advantages

Changfeng's anti-leakage powder device uses mechanical shaft seal tightening with self-lubricating seal rings, maintaining compression and sealing during operation. This reduces wear and minimizes noise from leakage.
Through-type heating system provides faster, more uniform temperature transfer, offering 50% greater efficiency than traditional heating plates. Optional PLC program control system available.
Complex tube belt design in the mixing chamber ensures excellent heat exchange and precise temperature control. Water-cooled rotors prevent material sticking, enhance temperature accuracy, and promote even dispersion.

After-Sales Service

Non-consumable parts are guaranteed for one year under normal use. We provide on-site installation guidance and long-term technical support. Note: Electrical components and motors are sourced from Taiwan and international brands.
