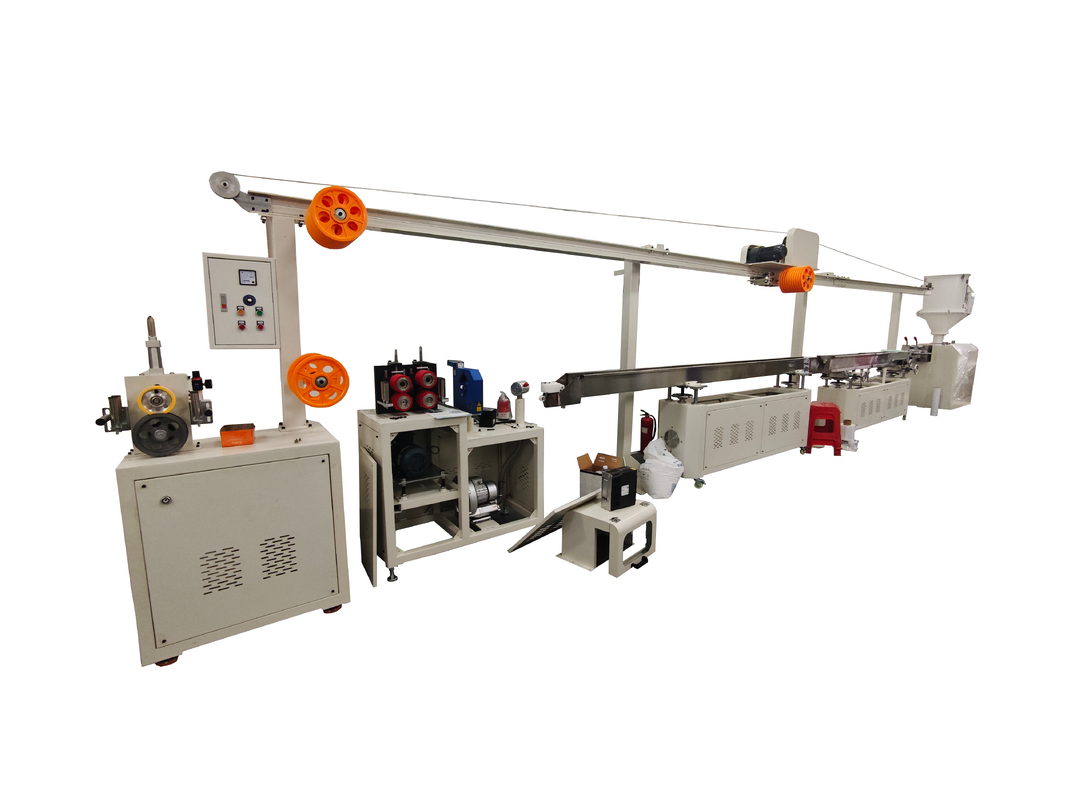

Custom 3D Printer Filament Extruder Machine Line 45mm Single Screw
Basic Properties
Place of Origin:
Guangdong,China
Brand Name:
CFine
Certification:
CE,ISO 9001
Model Number:
CF-45
Trading Properties
Minimum Order Quantity:
1 set
Payment Terms:
L/C,D/A,D/P,T/T,Western Union
Product Summary
Factory Custom 3D Printer Filament Extruder Machine Main Configurations Number Project Quantity 1 Φ45mm 3D printing material extrusion unit 1 2 50KG dryer and suction machine 1 3 Electrical temperature control box (PLC controlled) 1 4 2-meter movable constant-temperature water tank 1 5 4-meter fixed ...
Product Details
Highlight:
45mm 3D Printer Filament Extruder
,Single Screw 3D Printer Filament Extruder
,45mm 3d filament extrusion line
Keywords:
3D Printer Filament Extruder
Screw:
Single Screw
Material:
38CrMoALA
Diameter:
45mm
Draw Ratio:
28:1
Rotate Speed:
10~100rpm
Weight:
1000kg
Size:
13000*1000*2400mm
Main Motor:
32kw
Capacity:
70kg/hC
Product Description
Factory Custom 3D Printer Filament Extruder Machine
Main Configurations
| Number | Project | Quantity |
|---|---|---|
| 1 | Φ45mm 3D printing material extrusion unit | 1 |
| 2 | 50KG dryer and suction machine | 1 |
| 3 | Electrical temperature control box (PLC controlled) | 1 |
| 4 | 2-meter movable constant-temperature water tank | 1 |
| 5 | 4-meter fixed water tank | 1 set |
| 6 | 9-meter horizontal storage rack | 1 set |
| 7 | Four-wheel tractor | 1 |
| 8 | Servo-aligned single-axis winding machine | 1 set |
| 9 | Bidirectional laser diameter measuring instrument | 1 |
Application
Suitable for ABS/PLA consumable extrusion production
After-sales Service
During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and foreign brands.
