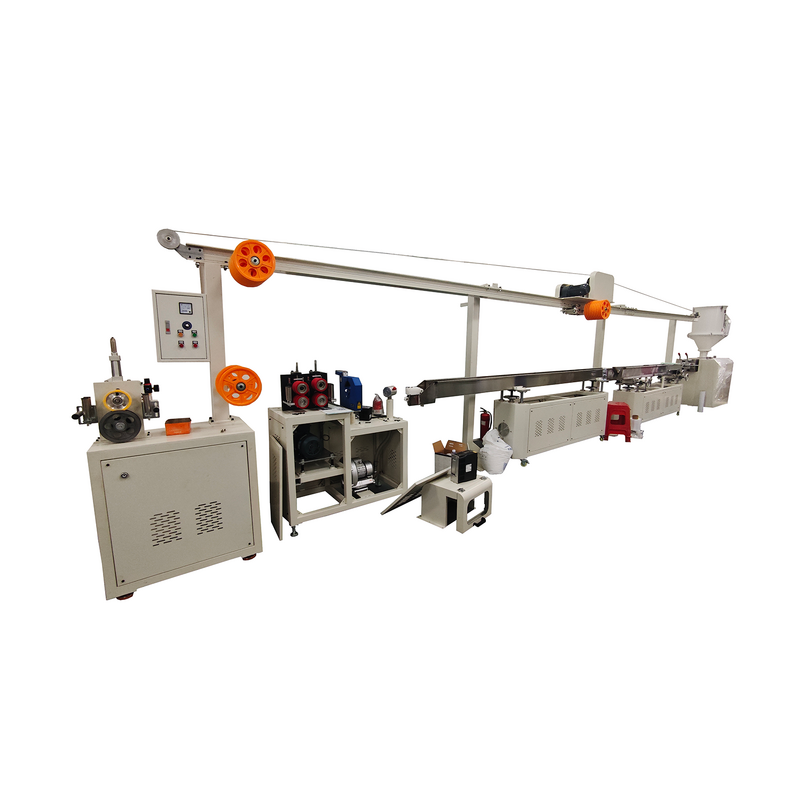

38CrMoALA 3D Filament Extrusion Machine System 10RPM~100RPM
Basic Properties
Place of Origin:
Guangdong,China
Brand Name:
CFine
Certification:
CE,ISO 9001
Model Number:
CF-45
Trading Properties
Minimum Order Quantity:
1 set
Payment Terms:
L/C,D/A,D/P,T/T,Western Union
Product Summary
Custom 3D Printer Filament Extruder Machine Equipment Overview Custom 3D Printer Filament Extruder designed for professional filament production with advanced control systems and high-capacity output. Main Configurations Number Project Quantity 1 Φ45mm 3D printing material extrusion unit 1 2 50KG ...
Product Details
Highlight:
38CrMoALA 3d filament extrusion machine
,100RPM 3d filament extrusion machine
,100RPM filament extrusion system
Keywords:
3D Printer Filament Extruder
Screw:
Single Screw
Material:
38CrMoALA
Diameter:
45MM
Draw Ratio:
28:1
Rotate Speed:
10~100RPM
Weight:
1000KG
Size:
13000*1000*2400MM
Main Motor:
32KW
Capacity:
70KG/hC
Product Description
Custom 3D Printer Filament Extruder Machine
Equipment Overview
Custom 3D Printer Filament Extruder designed for professional filament production with advanced control systems and high-capacity output.
Main Configurations
| Number | Project | Quantity |
|---|---|---|
| 1 | Φ45mm 3D printing material extrusion unit | 1 |
| 2 | 50KG dryer and suction machine | 1 |
| 3 | Electrical temperature control box (PLC controlled) | 1 |
| 4 | 2-meter movable constant-temperature water tank | 1 |
| 5 | 4-meter fixed water tank | 1 set |
| 6 | 9-meter horizontal storage rack | 1 set |
| 7 | Four-wheel tractor | 1 |
| 8 | Servo-aligned single-axis winding machine | 1 set |
| 9 | Bidirectional laser diameter measuring instrument | 1 |
Equipment Specifications
- Application: Suitable for ABS/PLA consumable extrusion production
- Main Component Brands:
- Motor: Permanent magnet motor
- Frequency Inverter: Permanent magnet motor controller
- Temperature Controller: PID intelligent type
- Finished Outer Diameter: Φ1.0--Φ3.0mm
- Extrusion Capacity: Max 70kg/h, open die head
- Linear Speed: Max 120m/min (depending on wire diameter)
- Machine Center Height: 1000mm from the ground
- Power Supply: 3-phase 380V, Total Power 32KW
- Color: Sky blue
After-sales Service
During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and foreign brands.
Mr. Wang
- Email: cfjx03@cfine.cc
- Tel: 15812819837
- WhatsApp: 8615812819837
-
WeChat:
cfine20250220
