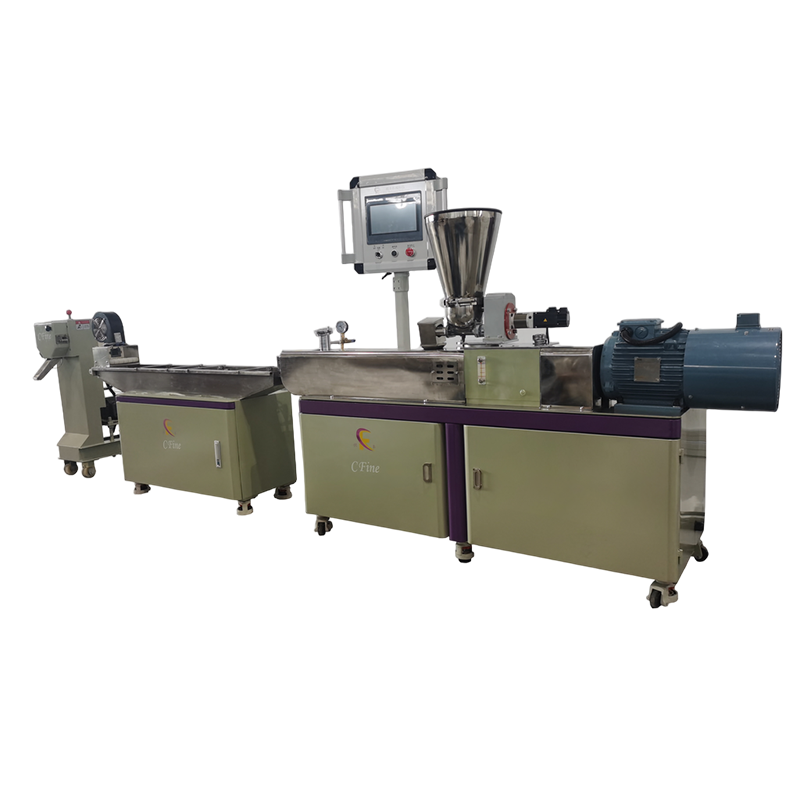

Custom 35mm Twin Screw Granulator Machine 60rpm~400rpm

Custom 35mm Twin Screw Granulator Machine 60rpm~400rpm
Custom 35mm Twin Screw Granulator Machine 60rpm~400rpm

Large Image :  Custom 35mm Twin Screw Granulator Machine 60rpm~400rpm

Product Details:
Place of Origin: Guangdong,China
Brand Name: CFine
Certification: CE,ISO 9001
Model Number: CF-20
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $20000~$30000
Packaging Details: wooden box package
Delivery Time: 60~180 days
Payment Terms: L/C,D/A,T/T,D/P,Western Union
Contact Now Chat Now

Custom 35mm Twin Screw Granulator Machine 60rpm~400rpm

Description
Gauge Of The Screw Rod: 21.7mm Draw Ratio: 40:1
Main Screw Speed: 60~400rpm Shearing Machine Power: 1.5kw
Highlight:

35mm Lab Granulator

,

400rpm Lab Granulator

,

60rpm double roller press granulator

Custom Twin Screw Granulator Machine
Technical Specifications
Specification CF-20 CF-35
Screw diameter 21.7mm 35mm
Draw ratio 40:1
Main Motor 4kw 18.5kw/22kw
Reduction gearbox Reduction ratio 2.5:1 Reduction ratio 3:1
Maximum speed Design: 500 RPM
Actual: 385 RPM		 Design: 800 RPM
Actual: 480 RPM
Type of cooling Sink cooling / Conveyor belt cooling
Sink cooling 1.2 meters of 304 stainless steel 2.5 meters of 304 stainless steel
Conveyor belt cooling 3-meter air-cooled conveyor belt 6-meter air-cooled conveyor belt
After-sales Service
During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and foreign brands.
